Overview
The Device Status report gives you visibility to address common problems and questions about devices in your CrashPlan environment. To analyze the data in-depth, export the report as a CSV file and use the data-analysis tool of your choice.
Device Status report
In very large CrashPlan environments (100,000+ devices), running this report without specifying any search criteria can cause noticeable performance delays. Specify search criteria whenever possible.
To access the Device Status report:
- Sign in to the CrashPlan console.
- From the menu, select Administration > Status > Reporting.
- If needed, click the Device Status tab.

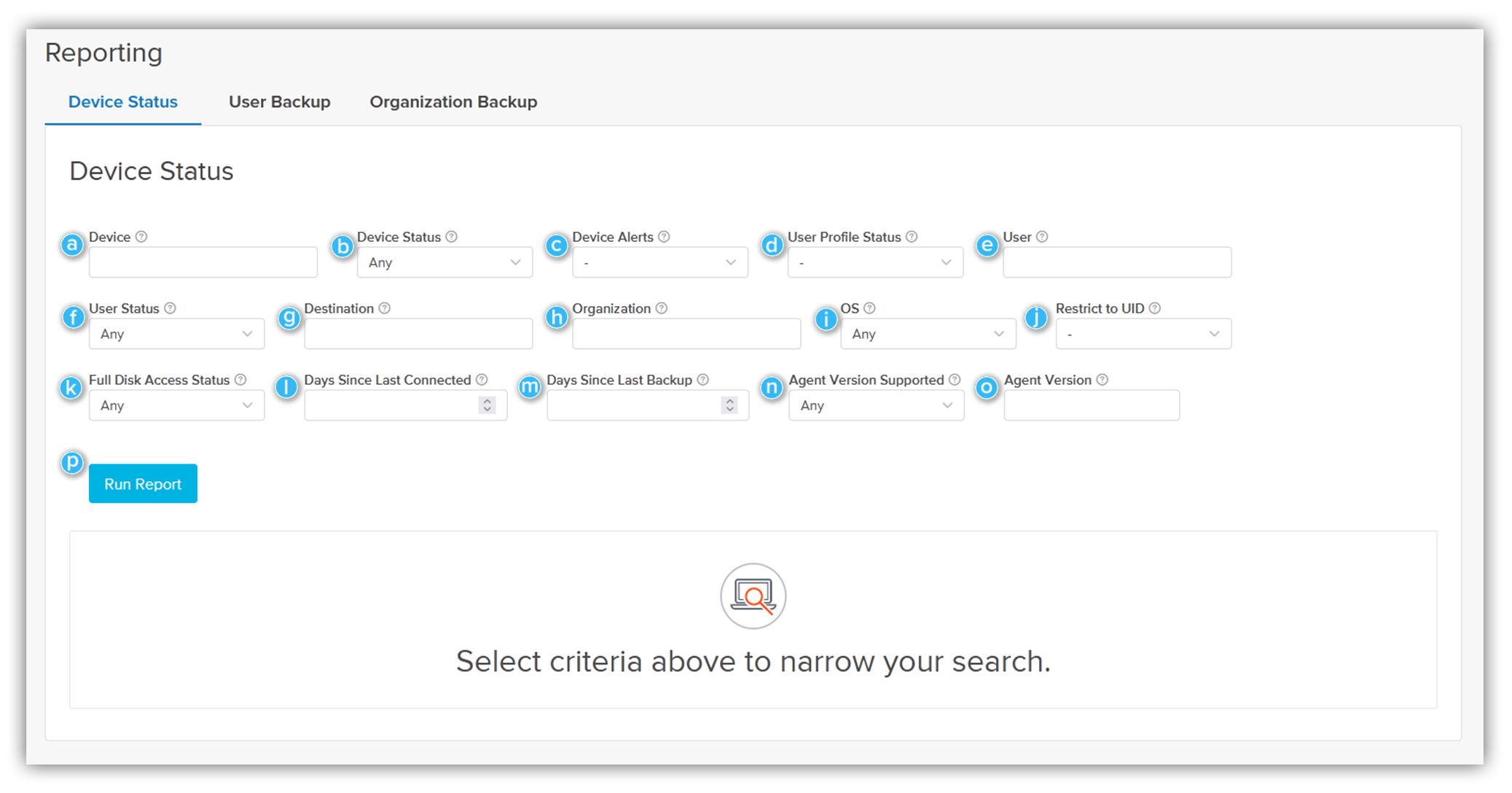

Search options
| Item | Description | |
|---|---|---|
| a | Device | Searches on device name or device external reference. |
| b | Device Status |
Filters by the device status:
|
| c | Device Alerts |
Filters by the device alert status:
|
| d | User Profile Status |
This only applies to Windows devices with Microsoft's User State Migration Tool (USMT).
Filters by the most recent User Profile Backup Status. Choose:
To view the User Profile Status in the search results, click the column selector icon |
| e | User | Searches on username, email address, first name, last name, or user external reference. |
| f | User Status |
Filters by user status:
|
| g | Destination | Searches on destination name. |
| h | Organization | Searches on organization name or organization external reference. |
| i | OS |
Filters by device operating system:
|
| j | Restrict to UID | Filters the search results by the unique identifier of an organization, user, device, or destination. |
| k | Full Disk Access Status | Mac devices only: Filter by full disk access status. |
| l | Days Since Last Connected | Filter by days since device last connected to an authority server. |
| m | Days Since Last Backup | Filter by days since backup activity last occurred on device. |
| n | Agent Version Supported |
Filter by whether the device is running a supported version of the CrashPlan Agent. |
| o | Agent Version |
Filter by agent version. |
| p | Run Report |
Returns search results based on selected criteria.
Results are limited to the first 1,000 returned. Refine your search to narrow your search results, or use the CrashPlan API DeviceBackupReport resource to return more than 1,000 results. |

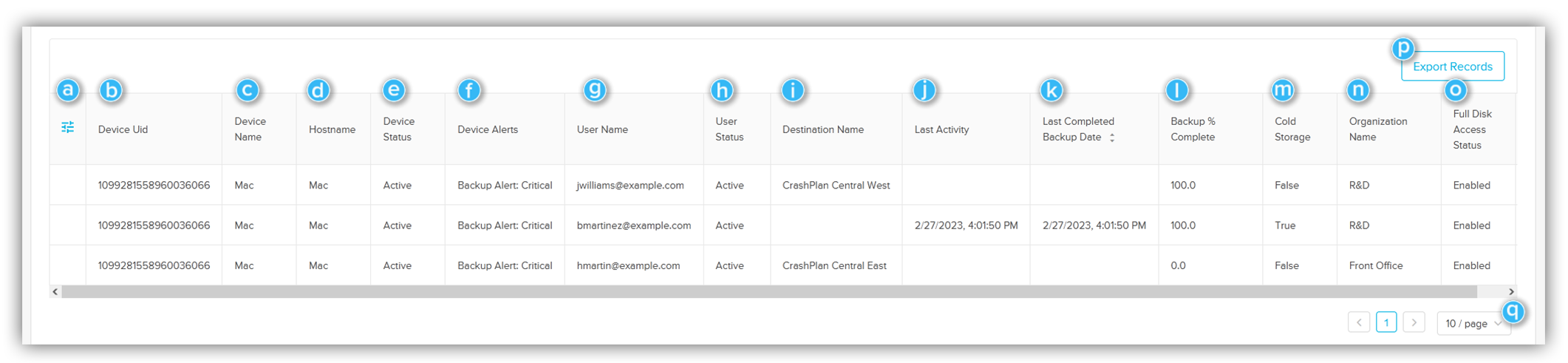

Search results
| Item | Description | |
|---|---|---|
| a | Column selector |
Displays a list of all possible columns to include in the search results. The default columns are listed in items b - m below.
See below for details on additional column options. |
| b | Device Uid | Unique identifier for the device. |
| c | Device Name |
The name assigned to the device by CrashPlan. By default, Device Name uses the Hostname reported by the device's operating system, but users and administrators can change the Device Name in the CrashPlan app and CrashPlan console. |
| d | Hostname |
The name of the device as reported by the device's operating system. The Hostname is a device property that is not managed by CrashPlan. If an authorized user changes the hostname of the device, the new hostname may take up to 24 hours to update in the CrashPlan console.
|
| e | Device Status |
Possible device states:
|
| f | Device Alerts |
Filters by devices that have not backed up recently. Possible alert states: |
| g | User Name | CrashPlan username of the user. |
| h | User Status |
Filters by user status. Possible user states:
|
| i | Destination Name | Name of the destination. |
| j | Last Activity | Date and time that the device last sent backup data to the specified destination. |
| k | Last Completed Backup Date | Date and time that the device last completed a backup to the specified destination. |
| l | Backup % Complete | Percentage of files selected for backup that are currently backed up. |
| m | Cold Storage |
Cold storage status of the device's archive.
|
| n | Organization Name | Name of the device's organization. |
| o | Full Disk Access Status |
Mac devices only: Indicates full disk access status
|
| p | Export Records | Downloads a CSV file of all search results. |
| q | Page size | Select to display 10, 25, 50, or 100 results per page. |
Additional data options available from the column selector (a)
| Device External Reference | External reference information for the device. |
| User Profile Status |
The most recent User Profile Backup status. This only applies to Windows devices with Microsoft's User State Migration Tool (USMT). Choose:
|
| User Email | Email address for the user. |
| User UID | Unique identifier of the user. |
| User External Reference | External reference for the user. |
| Destination UID | Unique identifier of the destination. |
| Last Connected Date | Date and time that the device last connected to the specified destination. |
| Created Date | Date and time this device was created in the CrashPlan environment. |
| Archive Size | Total number of bytes consumed by backed up files. |
| Archive GUID | Globally unique identifier of the backup archive. |
| Size of Selected Files | Total number of bytes selected for backup. |
| Organization UID | Unique identifier of the organization. |
| Organization External Reference | External reference information for the organization. |
| Agent Version |
Version number of the CrashPlan app installed on the device, including the build number. For example, 10.2.1.123 indicates CrashPlan app version 10.2.1, build 123. |
| OS | Device operating system. |
| OS Version | Device operating system version. |
| IP Address | Local IP address of the device. |
| Remote Address | External IP address of the device. |
| Server Name | Name of the server containing the device's backup archive. |
| Server UID | Unique identifier of the server. |
